TZL-C35 Automatic Rewinder

TZL-C35 automatic rewinder can supply a professional solution especially for the packages of weaving or knitting. It is self-developed by Taitan. It inherits perfect winding technology and extensive material adaptability, adopts optimized yarn path and advanced electronic control technology, Electrical control instead of mechanical drive. Simplifies machine structure and realizes automatic treatment for cheese, save manpower and improves the productivity.

Product Introduction


Computer Intelligent Winding System, Package Cradle And Grooved Drum
Splicer
Uniform yarn tension and waxing
Single head monitoring system
Middle yarn detector and yarn preclearer
Control unit of electronic yarn clearers
Man-machine interface
Computer Intelligent Winding System, Package Cradle And Grooved Drum
Computer Intelligent Winding System, Package Cradle And Grooved Drum

The electronic yarn clearer can provide a total and constant control for yarn quality according to the set data on the control unit of the yarn clearers . Any detects detected by the clearer are automatically removed, so ensures to get a perfect package yarn quality. Intelligent closed-loop tension control ensures a constant winding density and a uniform tension of yarn, The accurate control on the yarn tension enables to get a winding speed as high as possible as well as ensures the perfect quality of yarn and package.

1.Tension sensor detects the actual winding continuously

2.Tension sensor can change the yarn stress according to the actual requirement by means of single head computerized tensor.

3.Constant yarn tension ensures the uniform waxing.

4.The tension sensor can also prevent the wrapping yarn on grooved drum.

Splicer
The splicer, with high-quality parts, is all mechanically controlled, so it is absolutely reproducible. The resulting splicing is invisible, and its strength is more than 80% of the original yarn.
Uniform yarn tension and waxing
The electromagnetism adding or reducing pressure device centralized controlled via the computer, which is equipped with step-motor and tension wheel, thus efficiently ensure yarn quality. The yarn is waxed with a positively driven adjustable deflection device that ensures waxing uniformity.
Single head monitoring system
Every single head is equipped with monitoring alarm system.Which can show the alarm information to the operator at real-time.
Middle yarn detector and yarn preclearer
The middle yarn detector is stable, reliable and sensitive, and its sensitivity can be set on the man-machine interface according to the local circumstance and yarn type. The yarn per-clearer can separate some bigger nep effectively so as to get better package quality.
Control unit of electronic yarn clearers
The clearing yarn parameters can be set according to requirement of yarn quality. The yarn defect size and quantity can be counted accurately as well as classified.
Man-machine interface
Each function in the winding process is controlled by computer: yarn quality, barrel yarn quality, production quality, control of all peripheral devices and energy consumption. The computer is equipped with touch display, the data is displayed on the screen in text description, and all electronic functions can be self diagnosed. Alarm display can be given for relevant quality parameters deviating from the standard.

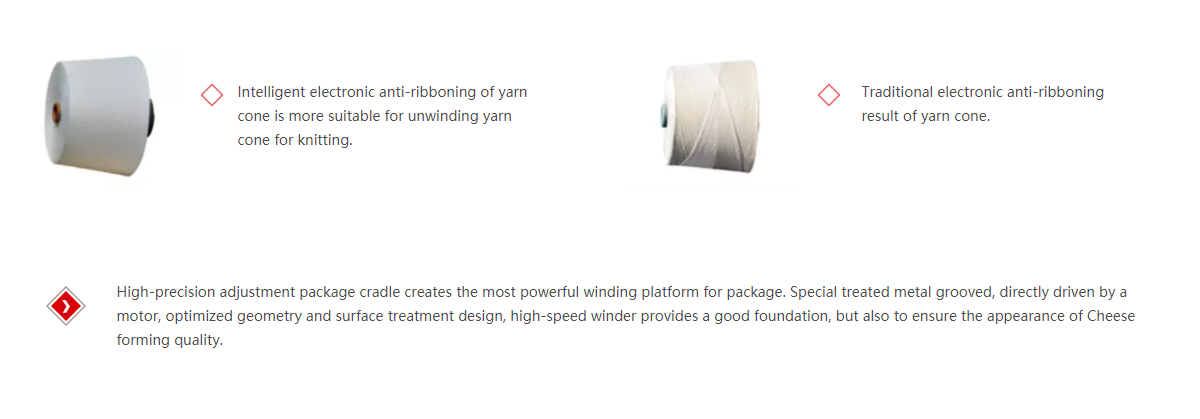

Computer Intelligent Winding System, Package Cradle And Grooved Drum
The problems of overlap, loop shedding and end breakage in the barrel yarn process have always plagued the textile industry and caused economic losses to users. A new type of intelligent anti overlap control system is adopted, which successfully solves the disadvantages of overlap, loop separation and end breakage, and provides a guarantee for the next high-quality unwinding. When the intelligent anti overlap control system overlaps the transmission ratio between the barrel yarn and the grooved barrel, the anti overlap control system can effectively calculate the transmission ratio between the barrel yarn and the barrel yarn to control the change of the grooved barrel motor, so as to achieve the control effect of no overlap of the barrel yarn.

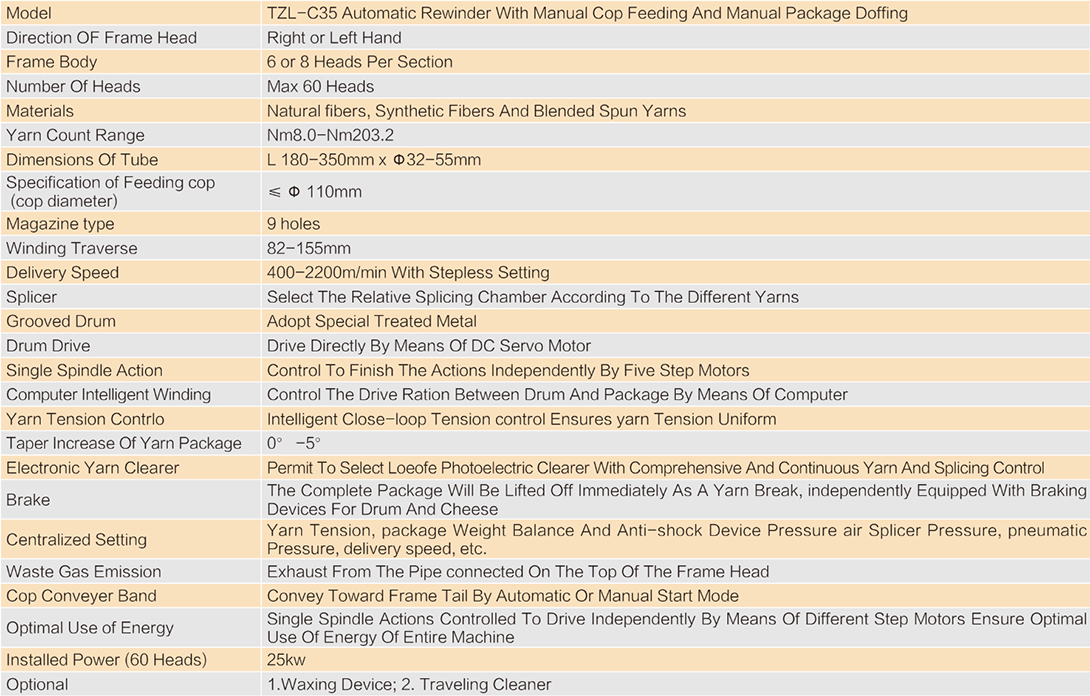

Technical Specifications
